Parts name |
|

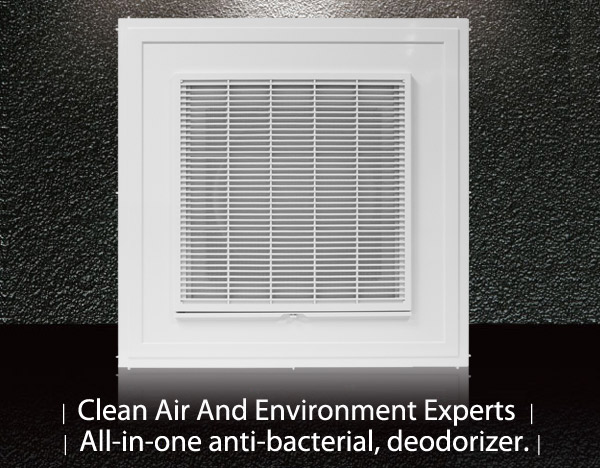

Energy-saving Fan |
Model No. |
|
WL-35WV1 |
Design |
|
Air ducts type |
Voltage |
|
110V/60Hz |
Dimension Specifications
|
|
Metric System：598×598×200mm |
| |
British Inch：2×2×0.66( feet ) |
Inner edge size
(No Frame) |
|
Metric System:575×575×200mm |
Inner edge size
(Frame included) |
|
Metric System:615×615×200mm |
Remote control farthest control distance |
|
12m |
Ceiling embedded height |
|
13cm |
Exposed height |
|
7cm |
Outlet Dia.(inch) |
|
16" |
Fan Blade OD(inch) |
|
14"±5% |
Back round hole size(inch) |
|
10"±5% |
External duct air hose size |
|
8"±5% |
External duct air hose height |
|
1.5" |
Applicable space |
|
10-13 m2 |
Amount of wind(m3/min) |
Strong |
|
105 |
Power Consumption |
Strong |
|
41W |
Energy efficiency(m3/mim.W) |
|
2.56 |
Weight |
|
5 Kg |
