Parts Name |
|

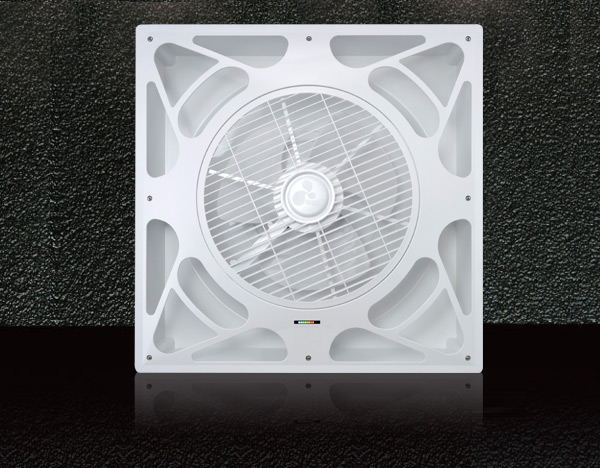

DC Fan |
Model No. |
General type |
|
WL-15WV3D
|
WL-35WV1D
|
WL-35WV2D
|
WL-55WV1D
|
| Negative ions type |
WL-15WV1CD |
WL-35WV1CD |
WL-35WV2CD |
WL-55WV1CD |
| Photocatalyst type |
WL-15WV1PD |
WL-35WV1PD |
WL-35WV2PD |
WL-55WV1PD |
Design |
|
Sealed type |
External duct style 8" |
Sealed external ducted style 10" |
Ceiling style [have notched (side)] |
Voltage |
|
DC24V
|
Dimension Specifications
|
|
Metric System：598×598×200mm |
| |
British Inch：2×2×0.66(feet ) |
Inner edge size
(No Frame) |
|
Metric System：
575×575×200mm |
Metric System：
575×575×350mm |
Metric System：
575×575×400mm |
Metric System：
575×575×400mm |
Inner edge size
(Frame included) |
|
Metric System：
615×615×200mm |
Metric System：
615×615×350mm |
Metric System：
615×615×400mm |
Metric System：
615×615×400mm |
Timer function |
|
0,2,4,6 hr |
0,2,4,6 hr |
0,2,4,6 hr |
0,2,4,6 hr |
Ceiling embedded height |
|
13cm |
13cm |
13cm |
no |
Exposed height |
|
7cm |
7cm |
7cm |
20cm |
Outlet Dia.(inch) |
|
16" |
16" |
16" |
16" |
Fan Blade OD(inch) |
|
14"±5% |
14"±5% |
14"±5% |
14"±5% |
Back round hole size (inch) |
|
no |
10"±5% |
10"±5% |
no |
External duct air hose size |
|
no |
8"±5% |
8"±5% |
no |
External duct air hose height |
|
no |
1.5" |
3.0" |
no |
Applicable space |
|
10-13 m² |
10-13 m² |
10-13 m² |
10-13 m² |
Standard air volume (m3/min) |
General type |
|
93.769 |
90.177 |
86.744 |
60.793 |
| Negative ions type |
93.309 |
110.335 |
95.356 |
124.501 |
| Photocatalyst type |
61.376 |
83.342 |
84.002 |
74.183 |
Power Consumption |
General type |
|
25 |
25.6 |
25.1 |
26.2 |
| Negative ions type |
24.3 |
24.3 |
24.3 |
24.3 |
| Photocatalyst type |
19.4 |
19.4 |
17.7 |
19.7 |
Energy efficiency (m3/ mim.W) |
General type |
|
3.75 |
3.52 |
3.46 |
2.32 |
| Negative ions type |
3.84 |
4.54 |
3.92 |
5.12 |
| Photocatalyst type |
3.16 |
4.3 |
4.75 |
3.77 |
Weight |
General type |
|
5.0KGS
|
| Negative ions type |
5.0KGS |
| Photocatalyst type |
6.0KGS |
