| 1. |
Electro-static particles colledtd efficiency
(minimum particle diameter):80%(≦PM5) above(0.3µm) |
| 2. |
Double ended porcelain UV germicidal lamp efficiency：99% above (optional accessory) |
| 3. |
Negative Ion Output：Greater than 1,236,000 ions/cc (optional accessory) |
| 4. |
Airflow
(initial pressure drop)：300~1000CFM(<3mmAq) |
| 5. |

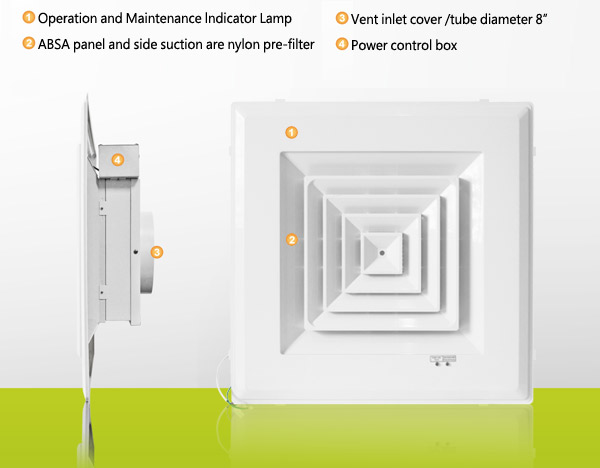

Exterior type：Light steel frame insert air conditioner return air inlet, exposed side suction pre-filter and operation / maintenance indicator lamp. |
|
| |
|
| |
|
※ |
| Specifications for Products |
Power (Consumption) |
AC 110/220V 1 ∮ 50/60Hz(Max. 40W) |
| Installing Size |
600x600x170mm |
| Weight(Material) |
ABS/5Kg |
|
|
| |
| ※Specifications for Purifying System |
| Taiwan new patent M3774865 China new patent ZL 2009 2 0266001.5 |
 |
|
 |
|
Parts name |
|
ano photocatalyst ceiling cleaner |
Model No. |
|
WL-CL777
|
Power |
|
AC 110V/220V
1∮50/60Hz |
|
|
|
600×600×170mm |
Electro-static particles colledtd efficiency
(minimum particle diameter) |
|
80%(≦PM5)above
(0.3
µm) |
Volatile organic compound (VOCs)removing efficiency |
|
80% above |
Airflow
(initial pressure drop) |
|
300-1000CFM(<3mmAq) |
Double ended porcelain UV germicidal lamp efficiency |
|
99% above |
Negative Ion Output |
|
Greater than 1,236,000 ions/cc
(optional accessory) |
Exterior type |
|
Light steel frame insert air conditioner return air inlet, exposed side suction pre-filter and operation / maintenance indicator lamp. |
Power Consumption |
|
40W |
Applicable space |
|
33 m2 |
Material |
|
ABS |
Weight |
|
|
|
|
 |
|
 |
| ※ |
Commodity certificated No.R37983 |
ISO 9001Certified |
Ten million Taiwan Dollars public liability insurance. |
|
|
