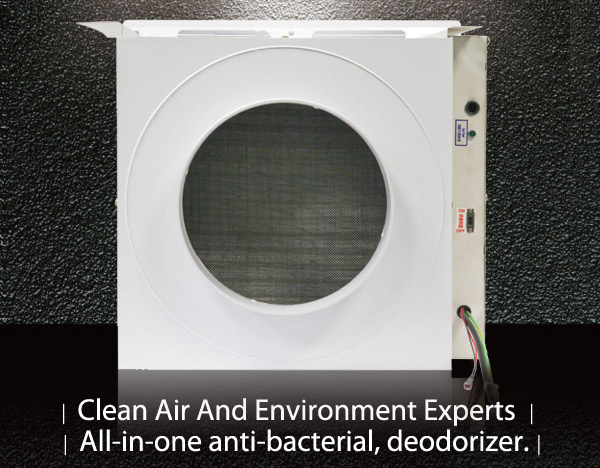

| ※Nano photocatalyst air purification box (WL-CL555) |
 |
| |
Light-related catalyst, chemical conversion that uses light conversion to chemical action. For this application, TiO2 is used as the catalyst agent. TiO2 itself is a catalyst with very strong oxidizing capabilities and high stability. As a photocatalyst, TiO2 has a strong decomposing capability that is more powerful in degrading substances and safer than water streatment chlorine gas, reactive oxygen and ozone.
TiO2 absorbs ultraviolet light from sunlight or lighting. It then produces something similar to photosynthesis in plants (called the photocatalyst effect). Its powerful oxidation action can easily degrade bacteria (effectively eliminates: E. coli, staphylococcus, and P.aeruginosa and limit the transmission of pathogens such as enterovirus, flu viruses and other filterable viruses) and act as a deodorizer (smoke, fish, toilet and pet odors, bacteria thoroughly eliminated with a sterilization rate of 99.97%. Testing done by a Japan's Ministry of Welfare (equivalent to our Bureau of Health) designated laboratory has certified its effectiveness. In Japan, TiO2 already has a broad range of applications and the products that make use of the developed photocatalysts are now very commonplace. |
|
| HOUSEHOLES |
Family rooms, dining rooms, kitchens, ceilings and walls. |
| PUBLIC PLACES |
Taxis, passenger cars, trucks, trains, buses, mass transit cars and aircraft. Mass transit and public transportation vehicles are small enclosed public places so large numbers of bacteria and viruses can accumulate inside. Government transportation authorities should address this problem and take action to thoroughly improve the air quality in public transportation vehicles. |
| TRAFFIC VEHICLES |
Hospital, school, kidergarten, restaurants, public restrooms, KTV and other places of business. |
|
|
| 1. |
Electro-static particles colledtd efficiency
(minimum particle diameter):80%(≦PM5) above(0.3µm) |
| 2. |
Volatile organic compound (VOCs)removing efficiency：80% above |
| 3. |
Double ended porcelain UV germicidal lamp efficiency：99% above (optional accessory) |
| 4. |
Negative Ion Output：Greater than 1,236,000 ions/cc (optional accessory) |
| 5. |
Airflow
(initial pressure drop)：300~2000CFM(<3mmAq) |
| 6. |

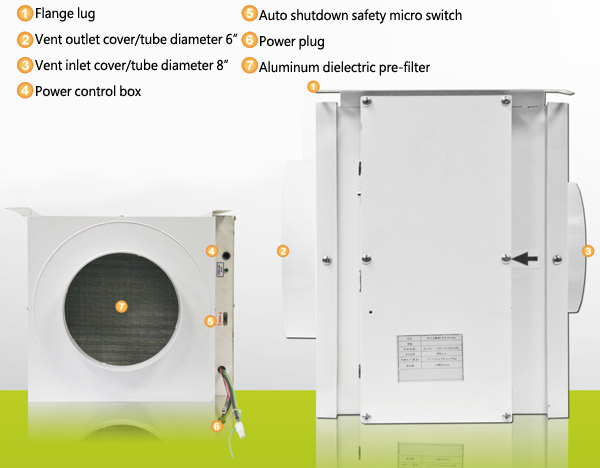

Exterior type：internal air baffle plate / pre-painted steel plate casing, the casing exposed side operation / maintenance indicator lamp and inlet / outlet vent cover diameter(∮6"∮8"∮10"∮12") |
|
| |
|
| |
|
※ |
| Specifications for Products |
|
Power (Consumption) |
AC 110/220V 1 ∮ 50/60Hz(Max. 40W) |
| Installing Size |
377x325x310mm |
| Weight(Material) |
Pre-painted steel plate/7Kg |
|
|
| |
| ※Specifications for Purifying System |
| Taiwan new patent M3774865 China new patent ZL 2009 2 0266001.5 |
 |
|
 |
|
Parts name |
|
Nano photocatalyst air purification box |
Model No. |
|
WL-CL555
|
Power |
|
AC 110V/220V
1∮50/60Hz |
|
Installing Size
|
|
377×325×310mm |
Electro-static particles colledtd efficiency
(minimum particle diameter) |
|
80%(≦PM5)above
(0.3
µm) |
Volatile organic compound (VOCs)removing efficiency |
|
80% above |
Airflow
(initial pressure drop) |
|
300-2000CFM(<3mmAq) |
Double ended porcelain UV germicidal lamp efficiency |
|
99% above
(optional accessory) |
Negative Ion Output |
|
Greater than 1,236,000 ions/cc
(optional accessory) |
Exterior type |
|
internal air baffle plate / pre-painted steel plate casing, the casing exposed side operation / maintenance indicator lamp and inlet / outlet vent cover diameter(∮6"∮8"∮10"∮12") |
Power Consumption |
|
40W |
Applicable space |
|
66 m2 |
Material |
|
Pre-painted steel plate |
Weight |
|
|
|
|
 |
|
 |
| ※ |
Commodity certificated No.R37983 |
ISO 9001Certified |
Ten million Taiwan Dollars public liability insurance. |
|
|
|
|
|
